 Momo Superturismo Aluminum Pedals

    click for a larger image
I just received a set of Momo Superturismo Aluminum Pedals used with a DC Sports Short Shift Adapter for $50 shipped, a pretty good deal since a new short shifter costs $50-$100 and a Momo pedal set also costs $50-100.

The first step is to remove the rubber pedal covers that come stock. This is pretty easy. Just reach down and feel behind the pedal and pull off the rubber. You'll be left with a rather plain looking metal pedal.


Figure out how you want to position your new pedals. Note that each pedal has two holes which you will run a bolt through and attach with a nut.

Make note of what is behind the pedals (ie the metal bars holding the pedals) so you won't end up drilling through them or not having space to put the attaching nuts.

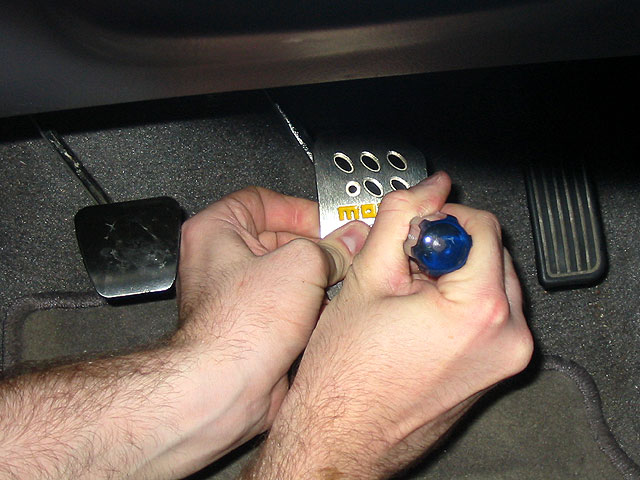

Mark the holes where you plan to drill. In our case, we used an awl to scratch a mark in the black paint on the pedals but you may wish to use a permanent marker or a white-out pen so it's more visible.

My gas pedal is plastic and we decided to leave it on and attach the new pedal over it.

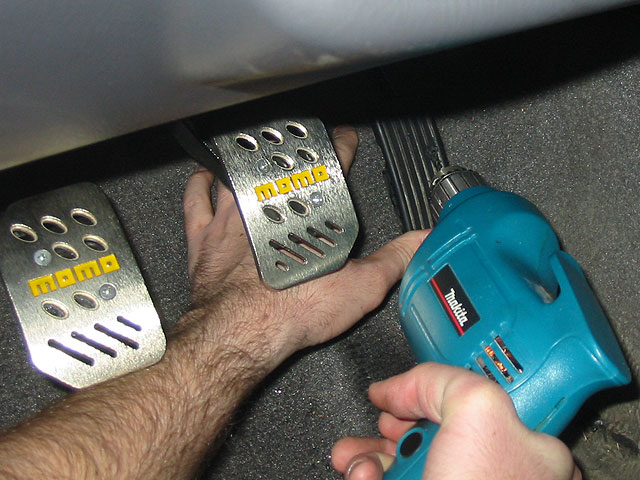

Start drilling! All the pedals are tough to reach with yor drill b/c of the angle so you may wish to hold them down with your hand, or sit in the seat and hold it down with a foot while you drill. Of course, be careful not to slip and drill a hole through your hand or foot.

The clutch and brake are metal so they are pretty tough to get started. You may find your drill bit dancing around the pedal a little but keep at it and you'll get the hole started. Once it's started, it doesn't take too long to get through the metal.


When you're done, position the new pedals, run the bolts through and attach them with the nuts by hand. The nuts are security nuts with plastic on them to keep them from wiggling off due to vibration. The easiest way is to use a socket or crescent wrench, or pliers to hold the nut, then use a philips screwdriver to tighten the bolt down.

Because we left the gas pedal on, we had to drill through some pretty thick plastic. I ended up having to get replacement bolts that were longer than the 3/4" ones that came with it. I needed a 1-1/2" and a 2" bolt, both at 1/8" diameters, although the ones that came with the pedals were slightly larger, so I had to get new security nuts as well.


One note with the gas pedal, because of the way the plastic is attached to the metal bar, we had to attach the pedal off center, however the marking we made weren't quite right and we had to drill at a funky angle which resulted in the pedal being slightly crooked after we were done with it. Ah well...

Just so you know, it's a real pain to do this just b/c of the funky position you're in to access the pedals. Seth was kind enough to take a picture of my butt to illustrate the difficulty of getting to the pedals.

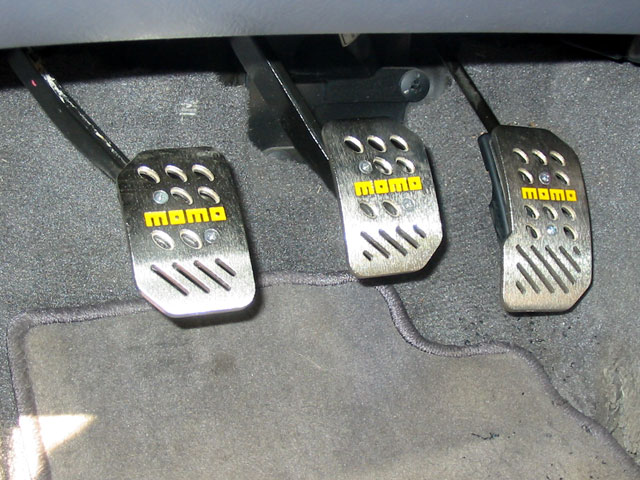

In retrospect, I am quite UNhappy with the pedals. They look good but the clutch pedal catches the floor mat and the gas pedal might prevent the gas from being pushed all the way down. Also, despite the security nuts, they do get loose and need to be tightened sometimes.
