 Tenzo R Front Upper Strut Bar


Strut bars will increase the stiffness of your chassis by connecting the left and right strut towers. I picked the Tenzo R strut bar which is one of the cheapest ones, about $90. Now that I've seen it, I think that I should have paid an extra $20 to get a better one, but that's ok. The Tenzo R bar comes apart which makes it easier to install, but potentially not as strong.

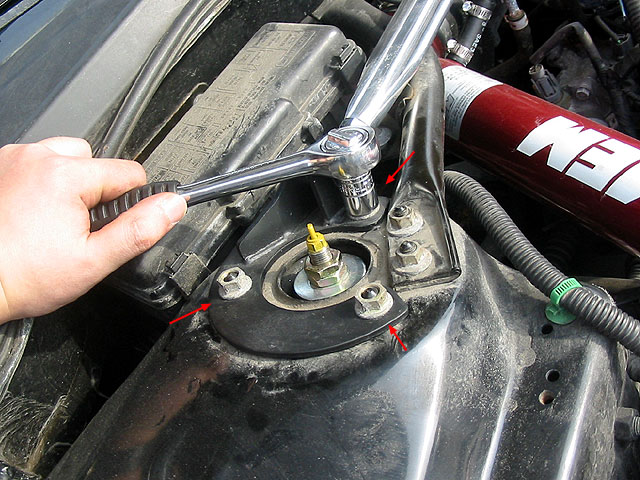

To install it, first remove the three main nuts on the strut towers.

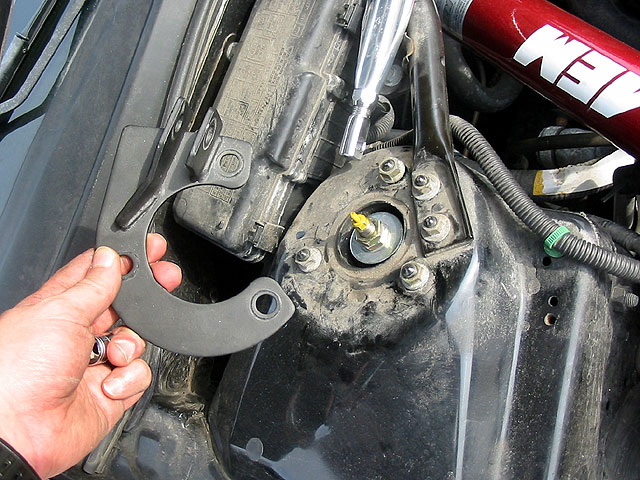

Unbolt the bar from the two brackets. Install the appropriate bracket on each side and re-install the nuts.

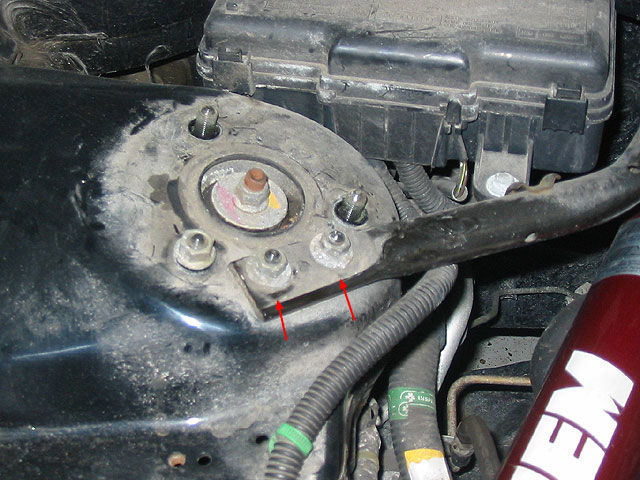

Tighten down the three nuts all the way.

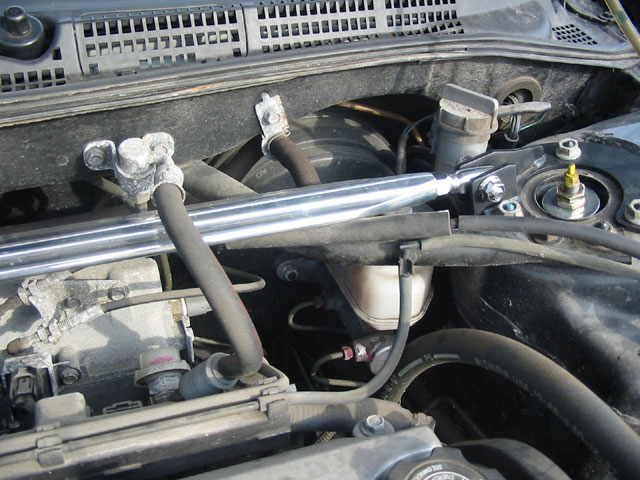

Slip the strut bar back into the brackets and adjust the width as necessary. I had to move some of the cables around to get the bar to fit properly.

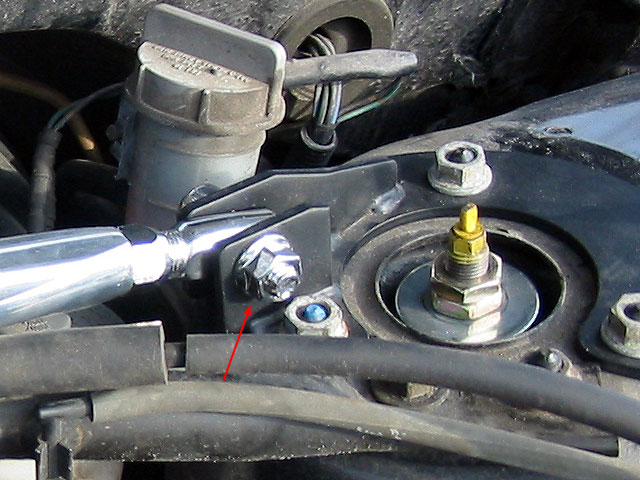

Replace the bolts that connect the bar to the brackets and tighten them. One side is a nut and the other is a thumb bolt, which wasn't working too well so I used a vise grip. That should be it.
